Centralized measurement of electric energy

Centralized measurement

Release time:2020-08-04 丨 Reading times:1389

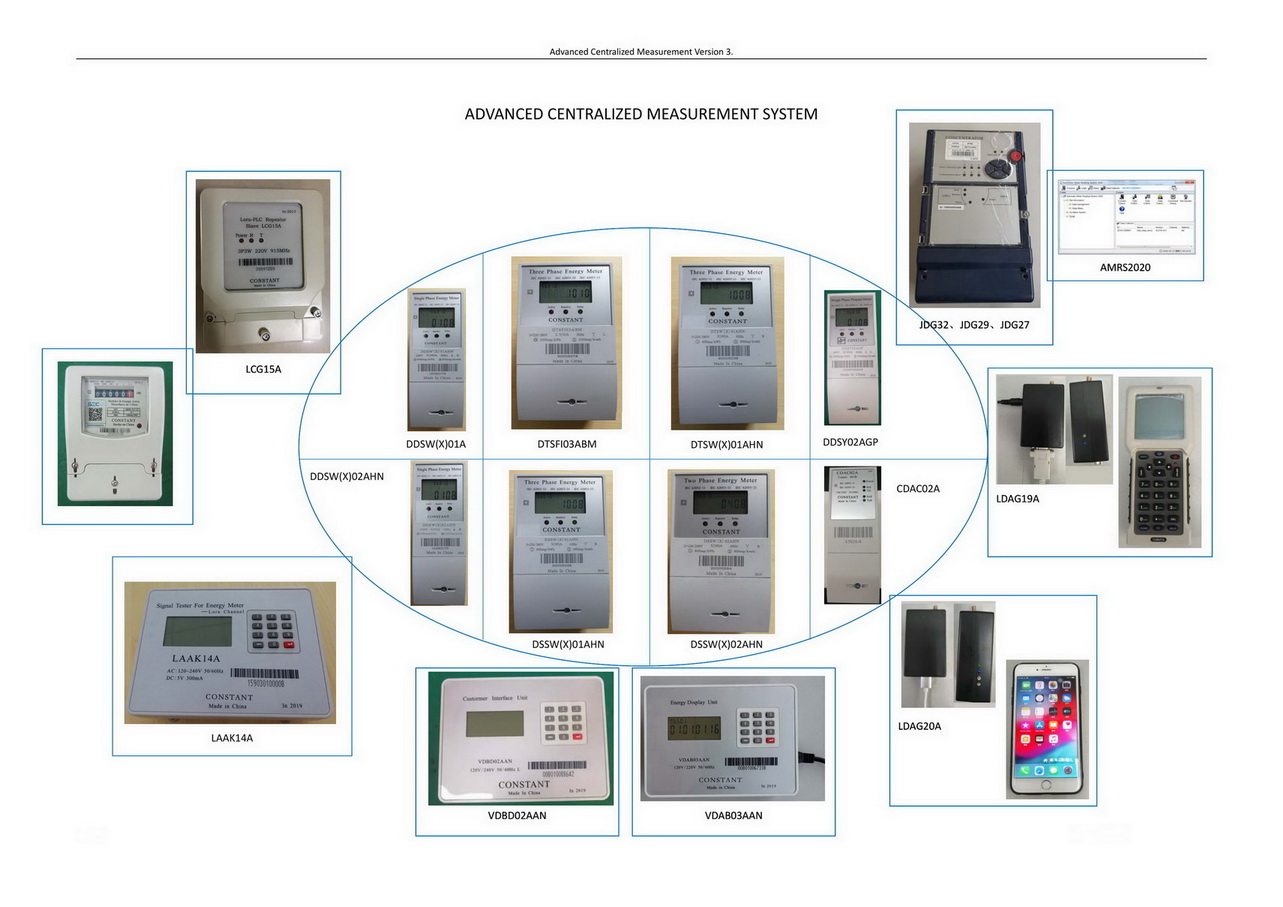

V3 PRODUCT LIST

Serial Number

Name

Type

Brief Introduction

1

Application software

AMRS2020

Application software installed on user’s computer. It is designed for V3 advanced centralized measurement system. By it you can complete the configuration of a new concentrator, you can read all data from V3 meters, and operate the all action of the meters. By its database the software can manage the meters, HUBs, and concentrators, so it is a efficient tool in new project debug.

2

Concentrator

JDG29

3P4W power supply. By LORA channel auto read active and reactive energy data from meter, and store them in itself. Support interactive action between application software and meters. Support event report which auto from meter. Dimension: 290mm × 178mm × 98mm.

3

Concentrator

JDG27

3P3W power supply. By LORA channel auto read active and reactive energy data from meter, and store them in itself. Support interactive action between application software and meters. Support event report which auto from meter. Dimension: 290mm × 178mm × 98mm.

4

Concentrator

JDG32

Next version. Auto adapt to the connection of power supply. By LORA channel auto read active and reactive energy data from meter, and store them in itself. Support interactive action between application software and meters. Support event report which auto from meter. Support AES-128bit message encryption. Up to 15 levels of auto communication relay. Dimension: 290mm × 178mm × 98mm.

5

3P4W energy meter

DTSFI03ABM

 Indirect energy meter, 2.5(10) A, class index 0.5S.  Possess a large number of types of measurement data. Display item conform to OBIS code. Possess Mass power profiles and event records. Support event auto report (last gasp). Apply LORA channel with external antenna. Support AES-128bit message encryption. Possess open box detection. Support rail installation. Supply measurement data to user display. Dimension: 185mm × 97mm ×104mm.

6

3P4W energy meter

DTSW(X)01AHN

 Direct energy meter, 5(100) A, class index 1.  Possess a large number of types of measurement data. Display item conform to OBIS code. Possess Mass power profiles and event records. Support event auto report (last gasp). Apply BBS channel with built-in antenna. Support AES-128bit message encryption. Support rail installation. Supply measurement data to remote display. Dimension: 185mm × 97mm ×104mm.

7

3P3W energy meter

DSSW(X)01AHN

 Direct energy meter, 5(100) A, class index 1.  Possess a large number of types of measurement data. Display item conform to OBIS code. Possess Mass power profiles and event records. Support event auto report (last gasp). Apply BBS channel with built-in antenna. Support AES-128bit message encryption. Support rail installation. Supply measurement data to remote display. Dimension: 185mm × 97mm ×104mm.

8

2P3W energy meter

DSSW(X)02AHN

 Direct energy meter, 5(100) A, class index 1.  Possess a large number of types of measurement data. Display item conform to OBIS code. Possess Mass power profiles and event records. Support event auto report (last gasp). Apply BBS channel with built-in antenna. Support AES-128bit message encryption. Support rail installation. Supply measurement data to remote display. Dimension: 185mm × 97mm ×104mm.

9

1P2W energy meter

DDSW(X)01AHN

 Direct energy meter, 5(100) A, class index 1.  Possess a large number of types of measurement data. Display item conform to OBIS code. Possess Mass power profiles and event records. Support event auto report (last gasp). Apply BBS channel with built-in antenna. Support AES-128bit message encryption. Support rail installation. Supply measurement data to remote display. Dimension: 185mm × 64mm ×97mm.

10

1P3W energy meter

DDSW(X)02AHN

 Direct energy meter, 5(100) A, class index 1.  Possess a large number of types of measurement data. Display item conform to OBIS code. Possess Mass power profiles and event records. Support event auto report (last gasp). Apply BBS channel with built-in antenna. Support AES-128bit message encryption. Support rail installation. Supply measurement data to remote display. Dimension: 185mm × 64mm ×97mm.

11

1P2W energy meter

DDSY02AGP

 Direct energy meter, 5(100) A, class index 1.  Support prepayment mode. Possess a large number of types of measurement data. Display item conform to OBIS code. Possess Mass power profiles and event records. Support event auto report (last gasp). Apply LORA channel with external antenna. Support AES-128bit message encryption. Support rail installation. Pair with a dedicated display "VDBD02AAN", support STS standard token interaction. Dimension: 185mm × 64mm ×97mm.

12

HUB (data collector)

CDAC02A

It is as a communication bridge between BBS channel meter and concentrator, manages the communication frame interaction of concentrator, BBS meter, and display. In the communication it realized the exchange of LORA text and BBS text. It auto detect BBS meter in same box, needn't configured. Also it possesses the detection of open meter box. Support

rail installation. Dimension: 185mm × 64mm ×97mm.

13

Display of shared version

VDAB03AAN

Installed in user home or public position such as corridors, display the measurement data from energy meter. By itself keyboard it can link with different energy meter in different time, so it can be shared for many user when installed public place. When the energy increases every 0.99 kWh, the meter which link with it will auto renew its display data. In addition to energy, it also display many measurement data such as voltage, current, demand, etc..  Its display code conforms to OBIS. Dimension160mm×120mm×47mm.

14

Display of STS version

VDBD02AAN

It is dedicated for STS prepayment energy meter of type DDSY02AGP.The difference between it and the displays of shared version is that it can only link one configured STS energy meter to display the measurement data. In addition to, by its keyboard can input STS tokens, then it transmit the token to the energy meter. It can also warning by voice or light when the energy consumption reach up to the threshold. Dimension: 160mm×120mm×47mm.

15

Converter between LORA and PLC in communication

LCG15A

It is designed for the compatibility of V3 energy meter and old version PLC meter work in same system. It convert received LORA frame to PLC frame for PLC meters, and then convert the responding PLC frame to LORA frame for V3 system. So that by this device, the old version PLC energy meter can work in V3 system. Dimension: 160mm×125mm×63mm.

16

V3 modem of RS232 version

LDAG19A

It functions to modulate/demodulate the communication signal. It integrates LORA channel and BBS channel together, connect HHU or computer by RS232 interface. By dedicated software in HHU or computer, you can read or operate the V3 energy meter whether which with channel LORA or BBS. As a tool it supports AES-128bit message encryption. Dimension: 95mm×52mm×32mm.

17

V3 modem of BT version

LDAG20A

It functions to modulate/demodulate the communication signal. It integrates LORA channel and BBS channel together, by Bluetooth link the cell phone which installed Android system. By dedicated software in cell phone, you can read or operate the V3 energy meter whether which with channel LORA or BBS. As a tool it supports AES-128bit message encryption. Dimension: 95mm×52mm×32mm.

18

LORA signal tester

LAAK14A

It is used for a new V3 project to evaluate the signal level of LORA in communication. Before devices installation, by this work you can budget the level of communication chain, thereby decide the positions of meters or concentrator to be installed. It can be as a signal source sending LORA frame in dedicated format. Also it can be as a receiver testing the frame signal strength, signal/noise ratio, frame error rate, etc.. So that you at least need 2 testers for the budget work in a new engineering. Dimension: 160mm×120mm×47mm.
